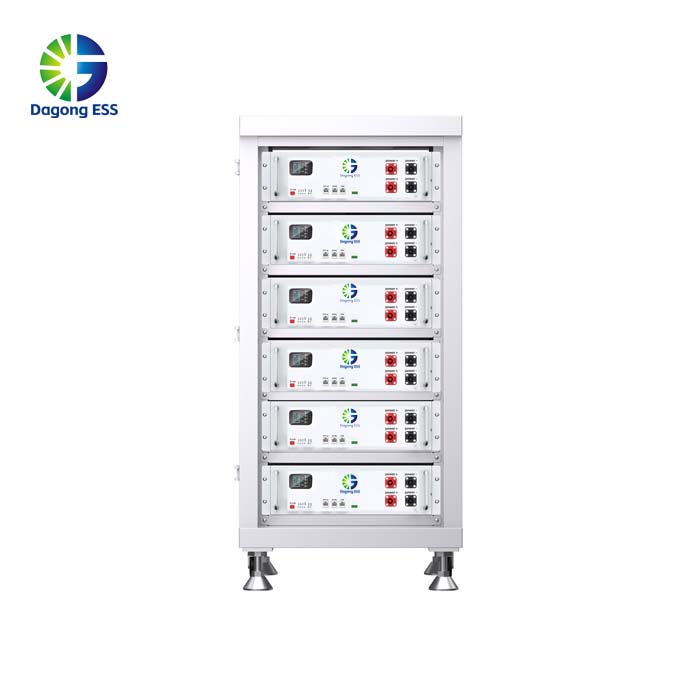

The 10kWh to 30kWh Rack Battery Cabinet is a compact, scalable energy storage solution for residential and commercial use. Featuring LiFePO4 cells, it provides reliable capacity and fits in standard 19-inch racks. With over 6000 charge cycles at 80% DOD, it ensures long-term durability. The system supports up to 25 units in parallel for increased capacity. Equipped with advanced BMS protection, short-circuit prevention, and industry certifications, it offers safe and reliable performance.
Cell type: Lithium Iron Phosphate Battery
Rated capacity @ BOL: 25kWh@ 25℃，0.5P
Nominal voltage: 51.2V
Nominal capacity: 208Ah
Nominal output power capacity: 5.12kW
Operating temperature: Charging: 0°C~ +55°C；
Discharge: -20°C~ +55°C
Cycle performance: ≥6000 cycles @ 80% DOD
Certification: CE,UN38.3, MSDS, 3C
What is the 10kWh to 30kWh Rack Battery Cabinet?
The 10kWh to 30kWh Rack Battery Cabinet is an advanced energy storage solution designed for residential, commercial, and industrial applications. It utilizes Lithium Iron Phosphate (LiFePO4) battery technology, providing a nominal energy capacity of 25kWh at 51.2V. This compact system fits seamlessly into standard 19-inch racks, with horizontal installation for easy integration.
Features of the 10kWh to 30kWh Rack Battery Cabinet
· High Durability: With a cycle life of over 6000 cycles at 80% Depth of Discharge (DOD), it ensures long-lasting performance for more than 10 years of daily use.
· Scalable: Supports parallel expansion with up to 25 units, allowing for increased capacity as energy needs grow.
· Advanced BMS Technology: Provides safety with protections against overcharge, over-discharge, overcurrent, and short circuits.
· Wide Operating Temperature: Operates within a charging range of 0°C to 55°C and discharging range of -20°C to 55°C.
· Low Self-Discharge: Enhances efficiency for longer operational periods.
· Communication Ports: Equipped with RS-485 and CAN ports for easy integration with inverters and monitoring systems.
· Certifications: CE, UN38.3, and MSDS certifications ensure compliance with international safety and quality standards.
Applications of the 10kWh to 30kWh Rack Battery Cabinet
This Rack Battery Cabinet is ideal for various applications, including:
· Residential Energy Storage: For backup power and energy independence.
· Commercial Applications: Supporting businesses with reliable energy storage solutions.
· Industrial Use: Meeting the energy demands of factories, warehouses, and large-scale operations.
Price of the 10kWh to 30kWh Rack Battery Cabinet
The price is based on EXW (Ex Works) terms and can vary depending on the supplier, order quantity, and market conditions. To get the most accurate pricing, please request a quote from a reputable energy storage supplier. Final costs may fluctuate due to raw material price changes and exchange rates.
If you are looking for 10kWh to 30kWh Rack Battery Cabinet and want to know more about the technical information, please feel free to contact Dagong ESS.
| Property | 2 Modules | 3 Modules | 4 Modules | 5 Modules |
|---|---|---|---|---|
| Model | DH-R-5000-C | |||
| Battery Cell Type | LiFePO4 | |||
| Nominal Voltage | 51.2V | |||
| Nominal Capacity | 200Ah | 300Ah | 400Ah | 500Ah |
| Nominal Energy | 10.24kWh | 15.36kWh | 20.48kWh | 25.60kWh |
| Nominal Output Power Capacity | 15.36kW | 20.48kW | 25.60kW | 30.72kW |
| Working Voltage | 44.80-58.40V | |||
| Charging Voltage | 58.40V | |||
| Charge Current | Standard Charge: 20A / Fast Charge: 50A | |||
| Max. Continuous Discharge Current | 100A | |||
| Instantaneous Discharge Current | 120A (<=1s) | |||
| Self-Discharge | <=500mA (Working) / <=800μA (Sleeping) | |||
| Overcharge Protection Voltage | 3.65V (±0.025V)/Cell | |||
| Overcharge Protection Release Voltage | 3.50V (±0.050V)/Cell | |||
| Over Discharge Protection Voltage | 2.50V (±0.080V)/Cell | |||
| Over Discharge Protection Release Voltage | 2.80V (±0.100V)/Cell | |||
| Charge Over Current Protection | 60.00A (±10%) | |||
| Discharge Over Current Protection | 110.00A (±10%) | |||
| Communication Port | RS-485 / CAN | |||
| Cycle Life | >=6000 times @ 80% DOD, 25°C | |||
| Recommended Scope of SOC | 10% ~ 90% (Better cycle life) | |||
| Life Cycle Recommended | Capacity/Nominal Capacity <70> | |||
| Property | Value |
|---|---|
| Case Material | SPCC |
| Dimensions (L*W*H) | 612*550*1276mm |
| Weight | 152Kg / 199Kg / 246Kg / 293Kg |
| Property | Value |
|---|---|
| Operating Temperature | Charging: 0°C~ +55°C / Discharge: -20°C~ +55°C |
| Operating Humidity | <95> |
| Operating Environment | Indoor rated |
| Storage Temperature | -20°C~ +45°C (1 month) / 0°C~ +35°C (1 year) |
| Storage Humidity | <95> |
| SOC @ Shipment | 30%-60% |
| Property | Value |
|---|---|
| Certificate | UN38.3 / MSDS / CE |
| Environmental | RoHS |
The 5kWh to 80kWh Stackable Household Energy Storage System is a flexible, scalable energy storage solution for homes. It allows users to stack units to meet energy needs from 5kWh to 80kWh, and integrates both solar and grid power for reliable energy supply. With an integrated inverter and system controller, it ensures smooth operation. The system features Wi-Fi and a control app for remote monitoring and management. Built with advanced laser welding, it offers over 6000 cycles and a 15+ year lifespan. Certified with CE, UN38.3, MSDS, and 3C for safety and quality.
The 5kWh Wall-Mounted Home Use Storage Battery is an efficient and versatile solution for residential and light commercial energy storage. Equipped with Lithium Iron Phosphate (LiFePO4) batteries, it integrates solar and grid power for reliable energy supply. With over 6000 cycles at 80% DOD and a lifespan of 15+ years, it offers durability and cost-efficiency. Certified with CE, UN38.3, and MSDS, it meets global safety and quality standards.
The 10kWh Wall-Mounted Energy Storage System is a reliable and efficient solution for residential and light commercial use. Featuring Lithium Iron Phosphate (LiFePO4) batteries, this hybrid system integrates solar and grid power for continuous energy availability. With over 6000 cycles at 80% DOD, a 15+ year lifespan, and CE, UN38.3, and MSDS certifications, it offers durability, cost-efficiency, and global safety compliance.

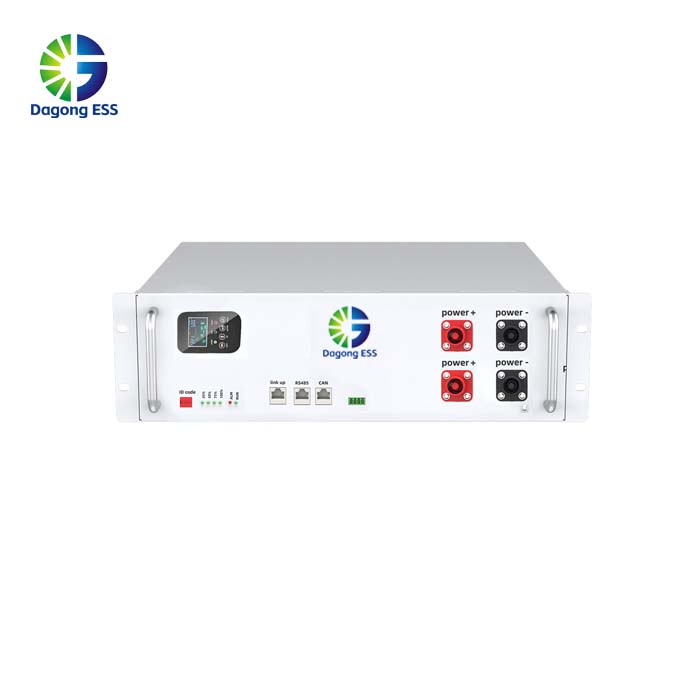

The 5kWh Rack Battery Cabinet is a compact, efficient, and scalable energy storage solution for both residential and commercial use. Featuring Lithium Iron Phosphate (LiFePO4) batteries with a 5.12kWh capacity, it supports horizontal installation in 19-inch racks. With over 6000 charge cycles at 80% depth of discharge, it offers long-lasting performance and cost-effectiveness. The system can be expanded by connecting up to 25 units in parallel to meet higher energy needs. Equipped with advanced BMS protection, short-circuit prevention, and certifications such as CE, UN38.3, and MSDS, it ensures safety and reliability.

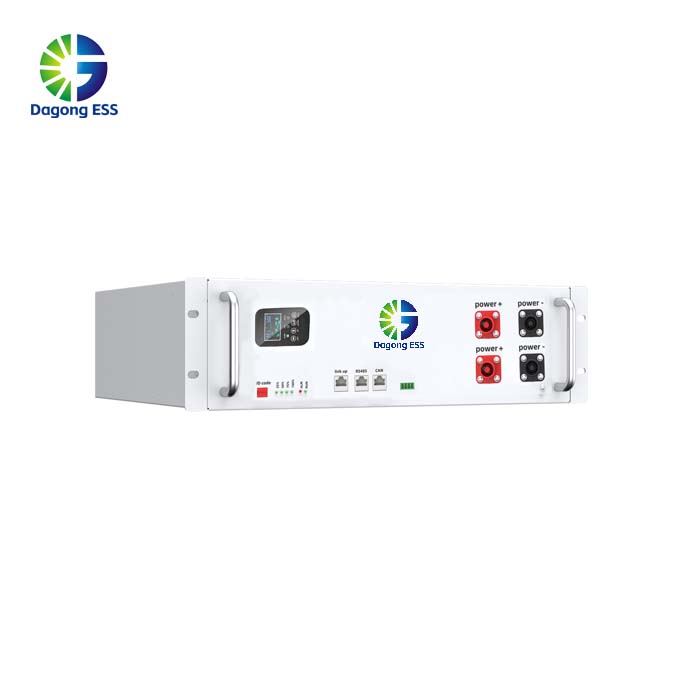

The 10kWh Rack Battery Cabinet is a compact, efficient, and scalable energy storage solution for residential and commercial use. With a 10.24kWh capacity and Lithium Iron Phosphate (LiFePO4) cells, it supports horizontal installation in 19-inch racks. Offering over 6000 charge cycles at 80% depth of discharge (DOD), it ensures long-lasting performance and cost-efficiency. The system can be expanded by connecting up to 25 units in parallel to meet higher energy demands. Built for safety and reliability, it features advanced BMS protection, short-circuit prevention, and meets certifications like CE, UN38.3, and MSDS.
The 10kWh to 30kWh Rack Battery Cabinet is a compact, scalable energy storage solution for residential and commercial use. With LiFePO4 cells, it offers a 25kWh capacity and fits in standard 19-inch racks. Boasting over 6000 charge cycles at 80% DOD, it ensures durability and cost-effectiveness. The system supports parallel connections of up to 25 units for expanded capacity. Featuring advanced BMS protection, short-circuit prevention, and industry certifications, it guarantees safe and reliable performance.
